Retained and immediate UI#

This page describes specifics and differences of retained and immediate mode UIs, and how the latter was adopted to AUI.

Retained Mode UI#

Retained Mode UI is the traditional approach to building user interfaces that most developers are familiar with. In this model, UI elements are created and persist in memory as a tree or graph structure. Think of it like arranging furniture in a room - once you place the elements, they stay there until explicitly moved or removed.

class MainWindow: public AWindow {
public:
    MainWindow() {
        setContents(Centered {
            // pain point: has to set initial value
            // pain point: has to use scary statements
            // instead of invoking a contract that
            // explicitly describes what the view
            // expects to receive and give
            mButton = _new<AButton>("0") AUI_LET {
                connect(it->clicked, me::increase);
            },
        });
    }

    void increase() {
        // pain point: has to manually maintain view's
        // state
        // pain point: has to somehow put together
        // business logic and UI state updates
        mButton->setText("{}"_format(++mCounter));
    }

private:
    _<AButton> mButton;
    int mCounter = 0;
};

When you create a button or a window in retained mode, it continues to exist even when not visible, maintaining its state, properties, and position. This approach is what powers most desktop applications, web browsers, and mobile apps. Systems like Qt Widgets, GTK, Swing, WinAPI, or the HTML DOM are classic examples of retained mode UIs.

Immediate Mode UI#

Immediate Mode UI takes a radically different approach. Instead of maintaining persistent UI elements, it rebuilds the entire interface from scratch every frame. Imagine having to redraw everything on a whiteboard multiple times per second - that's essentially what immediate mode UI does.

This approach, popularized by libraries like Dear ImGui, is particularly prevalent in game development and debugging tools. The UI is described procedurally, with the application explicitly controlling the state. Rather than creating a button that persists in memory, you essentially say "draw a button here" every frame, and if it's clicked, react immediately.

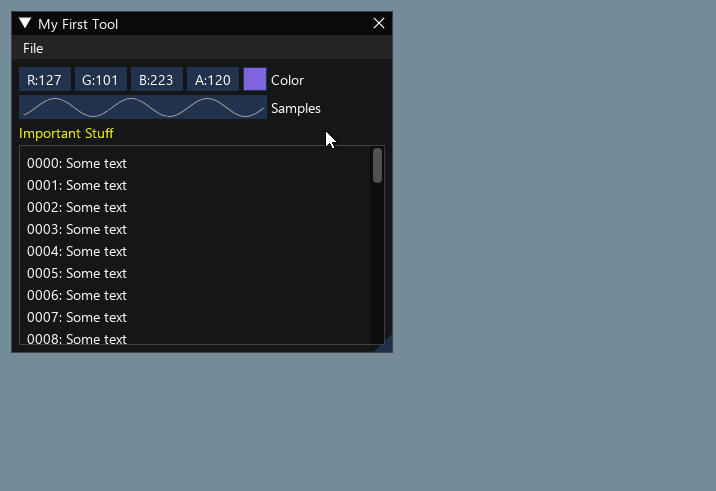

// Create a window called "My First Tool", with a menu bar.
ImGui::Begin("My First Tool", &my_tool_active, ImGuiWindowFlags_MenuBar);
if (ImGui::BeginMenuBar())
{
    if (ImGui::BeginMenu("File"))
    {
        if (ImGui::MenuItem("Open..", "Ctrl+O")) { /* Do stuff */ }
        if (ImGui::MenuItem("Save", "Ctrl+S"))   { /* Do stuff */ }
        if (ImGui::MenuItem("Close", "Ctrl+W"))  { my_tool_active = false; }
        ImGui::EndMenu();
    }
    ImGui::EndMenuBar();
}

// Edit a color stored as 4 floats
ImGui::ColorEdit4("Color", my_color);

// Generate samples and plot them
float samples[100];
for (int n = 0; n < 100; n++)
    samples[n] = sinf(n * 0.2f + ImGui::GetTime() * 1.5f);
ImGui::PlotLines("Samples", samples, 100);

// Display contents in a scrolling region
ImGui::TextColored(ImVec4(1,1,0,1), "Important Stuff");
ImGui::BeginChild("Scrolling");
for (int n = 0; n < 50; n++)
    ImGui::Text("%04d: Some text", n);
ImGui::EndChild();
ImGui::End();

This approach is convenient for dynamic interfaces, at the cost of reevaluating layout each frame and drawing everything from scratch.

Practical Implications#

Immediate mode UI can't be really used in most applications due to high resource consumption, especially on mobile platforms. However, the expressiveness and stateless approach give significant benefits in terms of software development speed.

Modern UI frameworks (SwiftUI, QML, Jetpack Compose, including AUI) actually represent a hybrid approach that blends concepts from both retained and immediate mode UIs. They're often called "declarative UI frameworks".

These frameworks create what appears to be an immediate-mode-like developer experience while maintaining retained-mode-like performance benefits.

With declarative syntax, the code style feels similar to immediate mode - you describe what you want the UI to look like at the given moment, rather than how to change it.

class MainWindow: public AWindow {
public:
    MainWindow() {
        setContents(Centered {
            // 1. you don't need to set the initial string "0"
            Button {
                .text = AUI_REACT("{}"_format(mCounter)),
                .onClick = { me::increase },
            },
        });
    }

    void increase() {
        // 2. the click handler was stripped down to
        // "business logic" only, no explicit actions
        // to UI.
        ++mCounter;
    }

private:
    AProperty<int> mCounter = 0;
};

Behind the scenes, these frameworks maintain a virtual representation of the UI (similar to retained mode) but update it efficiently through diffing algorithms. The visual representation is reevaluated only if the state is changed.

They use sophisticated state management systems that track dependencies and trigger recompositions only when needed. This is more efficient than pure immediate mode (which redraws everything) but more automated than traditional retained mode.

The key innovation is that they provide the mental model and simplicity of immediate mode while maintaining the performance benefits of retained mode. This is why they're often called "declarative UI frameworks" rather than being categorized as either retained or immediate mode.

AUI specifics#

AUI is historically a retained mode UI. However, it has adopted the "hybrid mode" concept. This is why most of AUI's views components provide "a traditional way", which consists of creating an object and maintaining its state manually via setters; and a "declarative way", which immediately describes the behavior and relationship of a view to the properties, the latter control the state.

In the examples above, we've used AButton for retained mode UI, and its declarative notation, declarative::Button, which accepts properties to control it. The latter is a declarative contract.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
/**
 * <!-- aui:no_dedicated_page -->
 */
struct Button {
    /**
     * @brief Content of the button.
     * @details
     * Can be any view, i.e., `Label` to display text.
     */
    _<AView> content;

    /**
     * @brief Handler for button click event.
     * @details
     * Called when user activates the button.
     */
    contract::Slot<> onClick;

    /**
     * @brief Determines if the button is default.
     * @details
     * Default buttons are colored with user's accent color and respond to ++enter++ key.
     */
    bool isDefault = false;

    _<AButton> operator()() {
        auto button = _new<AButton>();
        onClick.bindTo(button->clicked);
        if (isDefault) {
            button->setDefault();
        }
        button->setContents(Centered { std::move(content) });
        return button;
    }
};

The declarative contracts are implemented as C++ structures, taking advantage of C++20's aggregate initialization to provide a named-argument syntax. This makes the view's requirements and capabilities immediately obvious to developers while reducing the amount of boilerplate code needed to create and manage views.

AUI allows you to choose using between retained and declarative mode. Under the hood, both _new<AButton> and declarative::Button evaluate to creating a new instance of _<AButton>, which allows you to fall back to retained mode in declarative UIs if necessary. Due to growing expectations in regard to dynamism and responsiveness, we strongly suggest using declarative mode only.

A good example for preferring retained mode to declarative is a simple text editor, where everything goes around of a single view.

Why not a purely functional model (Jetpack Compose / immediate mode)?#

A frequently asked design question is whether AUI should have gone the "a view is just a function call, and the tree is rebuilt on every change" route, like Jetpack Compose (functional recomposition) or Dear ImGui (immediate mode), instead of the current SwiftUI-like model based on persistent view objects and declarative contracts.

The short answer: the current model is a deliberate fit for a C++ framework targeting desktop, mobile and embedded platforms. Adopting a pure "rebuild the tree" model would trade away AUI's core performance guarantees for little practical gain.

What AUI actually is#

AUI is a retained-mode framework:

  • The UI is a persistent tree of reference-counted view objects (_<AView>), whose children are stored in a plain container (AVector<_<AView>>).
  • The declarative Vertical { a, b } syntax is C++20 aggregate initialization over lightweight factory types. It runs once to build that tree.
  • Reactivity (AProperty / APropertyPrecomputed / AUI_REACT + signal/slot connect) mutates the existing views in place through setters. It does not re-run the building lambda.
  • Layout is recomputed lazily, only when invalidated (a dirty flag propagated by markMinContentSizeInvalid (in older versions) / requestLayout (in newer versions)), never unconditionally per frame.

In other words, AUI already provides the immediate-mode-like developer experience while keeping retained-mode performance.

Why the "everything is a function, rebuild on change" model does not fit#

  1. Recomposition needs a heavy runtime that C++ neither has nor wants. Compose's "call a function, the runtime figures out what to redraw" magic relies on a compiler plugin, a slot table and positional memoization (remember). Emulating that in C++ would mean shipping a large runtime and giving up the zero-overhead, predictable behavior C++ developers expect. AUI gets the equivalent result cheaply: dependencies are tracked automatically inside AUI_REACT via a DependencyObserverScope, with no global recomposition runtime.

  2. Rebuilding subtrees defeats the main advantage of retained mode — targeted mutation. Today, changing an AProperty invokes a single setter on an existing object. A pure functional model would either rebuild subtrees (heap allocations plus relayout) or diff them anyway — effectively reinventing a retained tree under the hood, but behind a more expensive front end.

  3. AUI is intentionally not immediate mode, precisely because of resource usage. As noted above, immediate mode is impractical for most applications, especially on mobile, because it re-evaluates layout and redraws everything every frame.

AUI already takes the best of the functional approach - locally#

Importantly, AUI does not have to choose between "everything is a function" and "everything is an object". It is a hybrid, and it applies functional decomposition surgically, exactly where structural dynamism is needed:

  • AUI_REACT(expr) is effectively "a function returning a value", lazily recomputed only when its dependencies change (see APropertyPrecomputed).
  • aui::experimental::Dynamic { AUI_REACT(...) } is "a function returning a view"; it swaps a single subtree via ALayoutInflater when its input changes. This is functional style, but localized.
  • AUI_DECLARATIVE_FOR / AForEachUI is "a function that builds a row from an item", but with a key-based view cache and virtualization inside an AScrollArea — conceptually Compose's LazyColumn, implemented on top of a retained tree.

So functional expressiveness is available as an opt-in where it is justified, while the default path stays a cheap in-place mutation.

Takeaway on ergonomics#

The right lesson to borrow from Compose is decomposition into small component functions, not the recomposition model. Prefer writing UI as a set of small factories that return a view:

_<AView> notePreview(const _<Note>& note);
_<AView> noteEditor(const _<Note>& note);

Each such function is a "component" that is invoked once; dynamism is then expressed through AProperty, AUI_REACT and Dynamic. This keeps the code readable (and avoids pushing a single, enormous expression through the compiler) without giving up retained-mode performance.
