Contributing to AUI#

AUI is maintained by 1 developer so community help and contributions are heavily appreciated. Here's some helpful information.

Becoming a contributor#

  1. Follow AUI's code style.
  2. Anyone may become an AUI contributor: there are no restrictions.
  3. Tasks and todos are listed on the GitHub Issues page. Issues marked as good first issue are relatively simple and can be done without deep dive into AUI.
  4. AUI follows git flow-like branching model. master branch is a release candidate branch. Each feature of the framework is created in a separate branch from master in the feat/ folder. Pulling changes from your branch to master is possible only if the merge with your branch does not generate merge conflicts and does not break the build and tests.

That is, if you want to implement a feature, you should fork AUI's repository (if you don't have direct access to it's repository), checkout the master branch and create a new branch called feat/feature-name, where you work under your feature.

When you have finished your work, you should open a pull request from the feat/feature-name branch of your repository to the master branch of the AUI's original repository. 5. Contributing to AUI, you agree that your code will be released under AUI's license.

AI#

We'd happily accept your AI-assisted work, as soon as you take complete responsibility thereof, and you have complete understanding of the changes you propose. Make sure your AI-assisted work does not violate someone's copyright. Please manually review and adjust AI-generated code/documentation. We won't merge changes if they contain obvious AI traces:

  • hallucinations
  • AI assistant-specific unnecessary statements: "I'm happy to help", "Please let me know if you have questions", etc
  • overexplanation, repetitive points, fluff writing
  • excessive usage of bullet points: nobody writes a page filled with bullet points entirely but AI

Please treat AI as a tool, not as a complete replacement of a software engineer.

Contributing from your project#

Want to help make AUI better? You can work on AUI right from your own project!

  • Open your project. If you don't have one, clone https://github.com/aui-framework/example_app.

  • Expose AUI's source code: Open the file called CMakeLists.txt and add ADD_SUBDIRECTORY:

# import AUI
auib_import(aui https://github.com/aui-framework/aui
        COMPONENTS core views curl json crypt updater
        ADD_SUBDIRECTORY # <------- here
        VERSION ${AUI_VERSION})

Note: This disables use of precompiled packages, AUI will be built locally.

  • See AUI in your editor: Now, when you open the project in CLion, AUI will show up as a folder.

  • Make changes: You can now change things in the AUI folder. Fix bugs or add cool stuff.

  • Make your own copy of AUI: Go to GitHub and make a "fork" of AUI, if you don't have one already.

  • Open a terminal in AUI: Right-click on the AUI folder in CLion. Choose "Open In" and then "Terminal".

  • Send your changes: In the terminal window, type these commands (change "ololo" to your GitHub name):

git checkout master
git checkout -b feat/your-feature-name
git remote set-url origin git@github.com:ololo/aui
git add -A
git commit -m "your commit message here"
git push -u fork feat/your-feature-name

This saves your changes to your feature branch on your fork.

Note: If you already added a fork remote in a previous session, skip the git remote set-url line.

  • Share your work: Go to your fork on GitHub. It will ask if you want to make a "pull request". Just do it! Make sure the pull request targets the master branch of the original AUI repository.

Story points#

Story points are designed as relative measurements of work complexity, deliberately decoupled from time-based metrics ( hours/days/weeks). They provide a general indication of effort required for task completion. It's important to note that story point comparisons across different teams, departments, or organizations are inherently invalid.

For example, Team A's 100-point sprint delivery might represent more actual work than Team B's 200 points, as each team develops their own story point scale. While this guide isn't meant to standardize story points globally, it offers internal guidelines for consistent estimation.

Note: All stories include standard overhead for PR reviews, test verification, and deployment processes. This overhead should be factored into estimates and can sometimes exceed the time needed for the primary task.

This section explains how story points are assigned to tasks in the AUI framework project and their relationship to developer compensation.

Financial compensation#

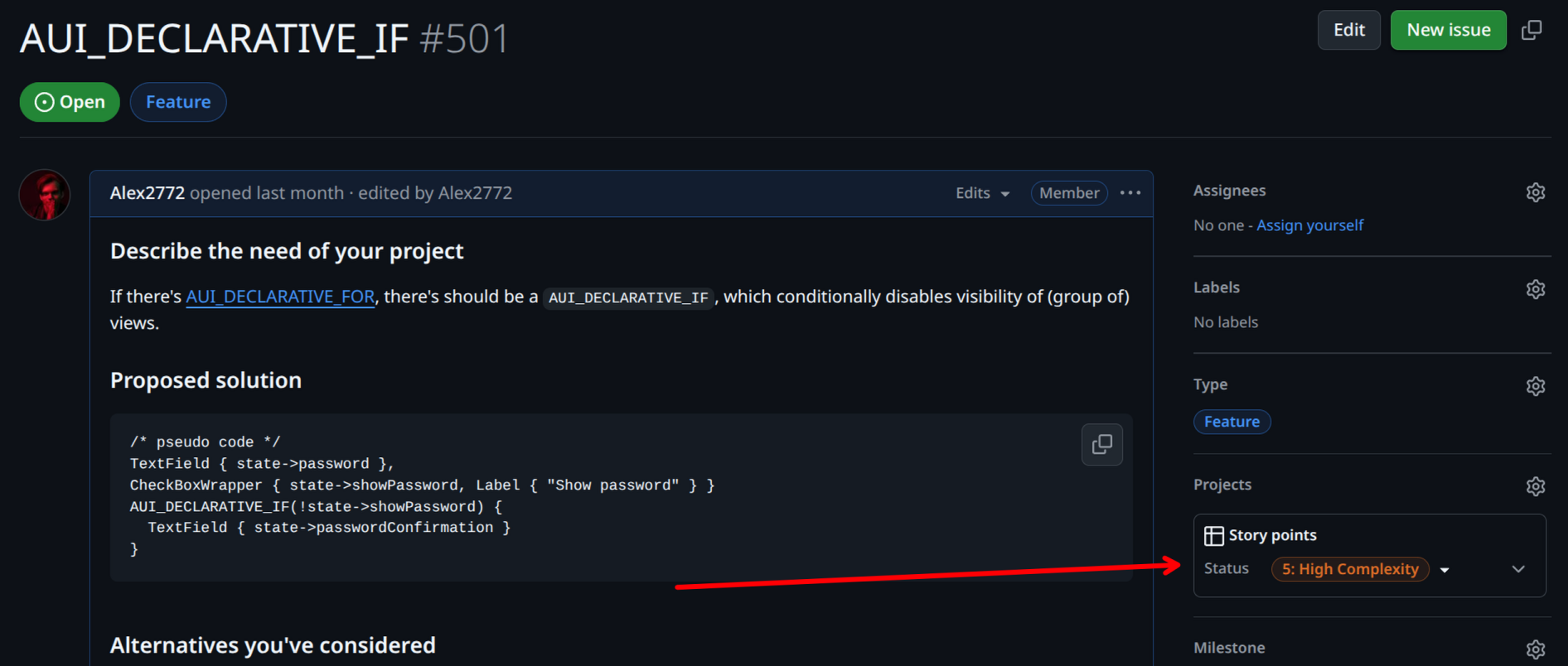

The number of story points assigned to a GitHub issue in the AUI repository directly determines the financial compensation paid to the external developer who successfully resolves that issue.

For information about getting in touch regarding compensation, please refer to the contact details provided in our README. Pick a task which you want to resolve before contacting.

1 Point - Minimal Complexity#

These represent the simplest possible changes. They involve single-line or minimal code modifications, such as text corrections or content updates. Tasks typically involve simple configuration value modifications with no logic alterations or risk of breakage. There are no external dependencies, and all necessary information is self-contained within the ticket. The changes are covered by existing tests or basic smoke testing, with no test updates required.

2 Points - Low Complexity#

These tasks represent approximately double the effort of a 1-point story. They may include minor third-party dependency updates with API adjustments and basic method refactoring without output changes. New test creation might be necessary. External dependencies are straightforward, such as Docker image whitelisting, and follow clear documentation or known processes.

3 Points - Moderate Complexity#

This is the first level where significant uncertainty enters the picture. These tasks require a notable but manageable time investment and may involve multiple external dependencies. They often include major version updates of libraries with breaking changes. Some cross-team communication is required, though clarifications can typically be resolved through a single call or chat. This represents the upper range of typical story size.

5 Points - High Complexity#

These stories are an extended version of 3-point complexity, involving a substantial workload with multiple unknowns to resolve. They often include significant breaking changes across components and require extensive test modifications. Multiple cross-team meetings are likely necessary, and broader stakeholder involvement is common.

8 Points - Very High Complexity#

This represents the maximum reasonable scope for a single sprint. These stories involve major system changes or refactoring, new integrations, or complete rewrites. They come with significant unknowns at the start and should be considered for splitting into smaller stories. Examples include framework migrations or major library updates. Requirements often have high uncertainty.

13+ Points - Excessive Complexity#

Stories of this size exceed single sprint capacity and typically require multiple sprints to complete. They contain too many unknowns and variables, carrying a high risk of underestimation. Such stories should be split into smaller components or converted to epics. Examples include full API integrations or complete rebranding projects. These large-scale changes are too complex to estimate accurately and manage effectively within a single sprint.

Guides#

Creating an AUI module#

Suppose whe want to create a module called aui::my_module:

  1. In the main CMakeLists.txt:
    1. Find the # define all components anchor, put define_aui_component(my_module).
    2. Find the # all components for exporting anchor, put my_module to AUI_ALL_COMPONENTS.
  2. If aui::my_module has external dependencies, handle them at # add dependencies in cmake/aui-config.cmake.in.
  3. Put the reference to the module in docs/index.md.
  4. Create aui.my_module dir.
  5. Copy & paste CMakeLists.txt from any small module (i.e. aui::xml) and configure it for your module.
  6. Use API_AUI_<your module> to export symbols from your module (it's created by the aui_module CMake function).

Documentation#

Recommended: easy way to contribute

Want to fix a typo or make a small documentation improvement? You can do it directly through GitHub:

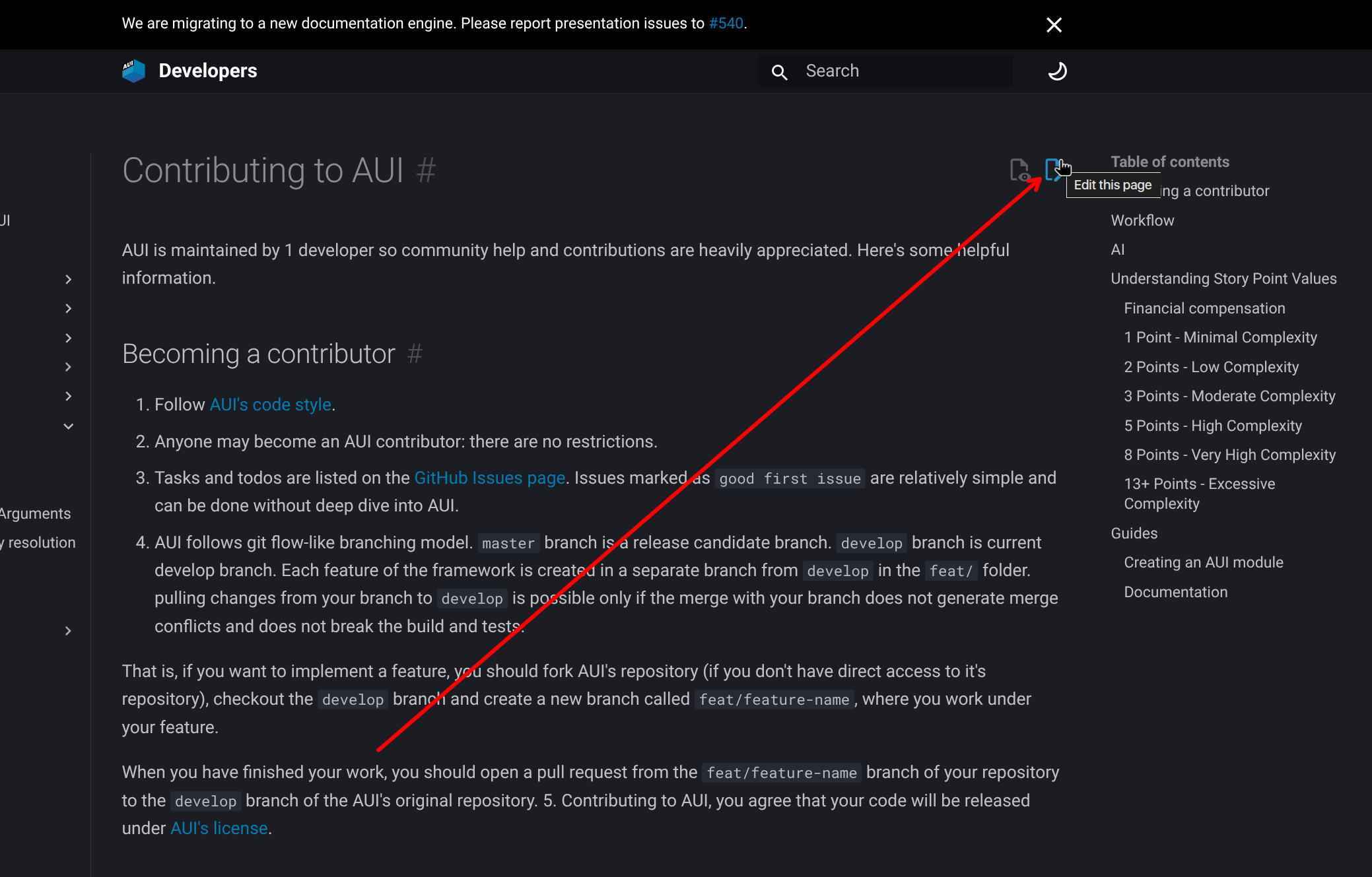

  1. Navigate to top right corner of the page you would like to contribute to and click "Edit this page".
  2. On GitHub's edit page, you'll be prompted to fork the AUI repository if needed
  3. Make your changes in the editor.
  4. Commit your changes and create a pull request to https://github.com/aui-framework/aui
  5. Once our documentation pipelines verify the changes, we'll merge your contribution.

This process is perfect for minor documentation updates and doesn't require setting up a local development environment.

The docs found on aui-framework.github.io is generated with MkDocs.

To generate documentation, run the following command from the root of AUI repository:

Note

These commands are not tested on Windows.

git clone https://github.com/aui-framework/aui
cd aui
git checkout master

# if you want to use venv
python3 -m venv .venv
source .venv/bin/activate

# only for the first time
python3 -m pip install -r docs/python/requirements.txt

# generate docs
mkdocs serve --use-directory-urls

After the command is complete, you can visit docs at http://127.0.0.1:8000/.

In our pipelines, we use --strict flag to treat warnings as errors. If warnings were produced during generation, the CI/CD pipeline wouldn't pass.

mkdocs build --strict --use-directory-urls

Most functionality is provided by Material for MkDocs theme. In addition to md files found in docs/ dir, we have several python scripts to populate documentation:

  • docs/python/hooks.py - handles XML comments.
  • docs/python/doxygen.py - handles Doxygen-style documentation found in our C++ code. Doxygen, as the tool, does not participate in our documentation generation. We still use Doxygen style to maintain compatibility with documentation readers in IDEs.
  • docs/python/examples_page.py - generates pages related to examples.
