Game of Life

Example's page

This page describes an example listed in app category.

Game of Life implementation that uses advanced large dynamic data rendering techniques such as ITexture, AImage to be GPU friendly. The computation is performed in AThreadPool.

Conway's Game of Life, a cellular automaton devised by the mathematician John Conway. The game consists of a grid where each cell can be either alive or dead, and its state evolves over time according to simple rules based on the states of adjacent cells.

Every cell interacts with its eight neighbours, which are the cells that are horizontally, vertically, or diagonally adjacent. At each step in time, the following transitions occur:

• Any live cell with fewer than two live neighbours dies, as if by underpopulation.
• Any live cell with two or three live neighbours lives on to the next generation.
• Any live cell with more than three live neighbours dies, as if by overpopulation.
• Any dead cell with exactly three live neighbours becomes a live cell, as if by reproduction.

Wikipedia

Cells

Represents the grid of cells with their states (CellState::ALIVE or CellState::DEAD). It has methods for initialization and randomization, as well as accessors to get the size and state of individual cells.

Computations are handled asynchronously by an AThreadPool, improving performance during state transitions or rule computations in large grids.

@dontinclude examples/app/game_of_life/src/main.cpp @skip class Cells @until /// end

CellsView

Visualizes the grid using a texture. It updates the texture when cells change their states. When the pointer is pressed on the view, it toggles the state of the cell under the cursor.

The grid is composed by lines in drawGrid lambda. These lines are then passed to the rendering, making a single draw call to draw the grid.

@skip class CellsView @until /// end

GameOfLifeWindow

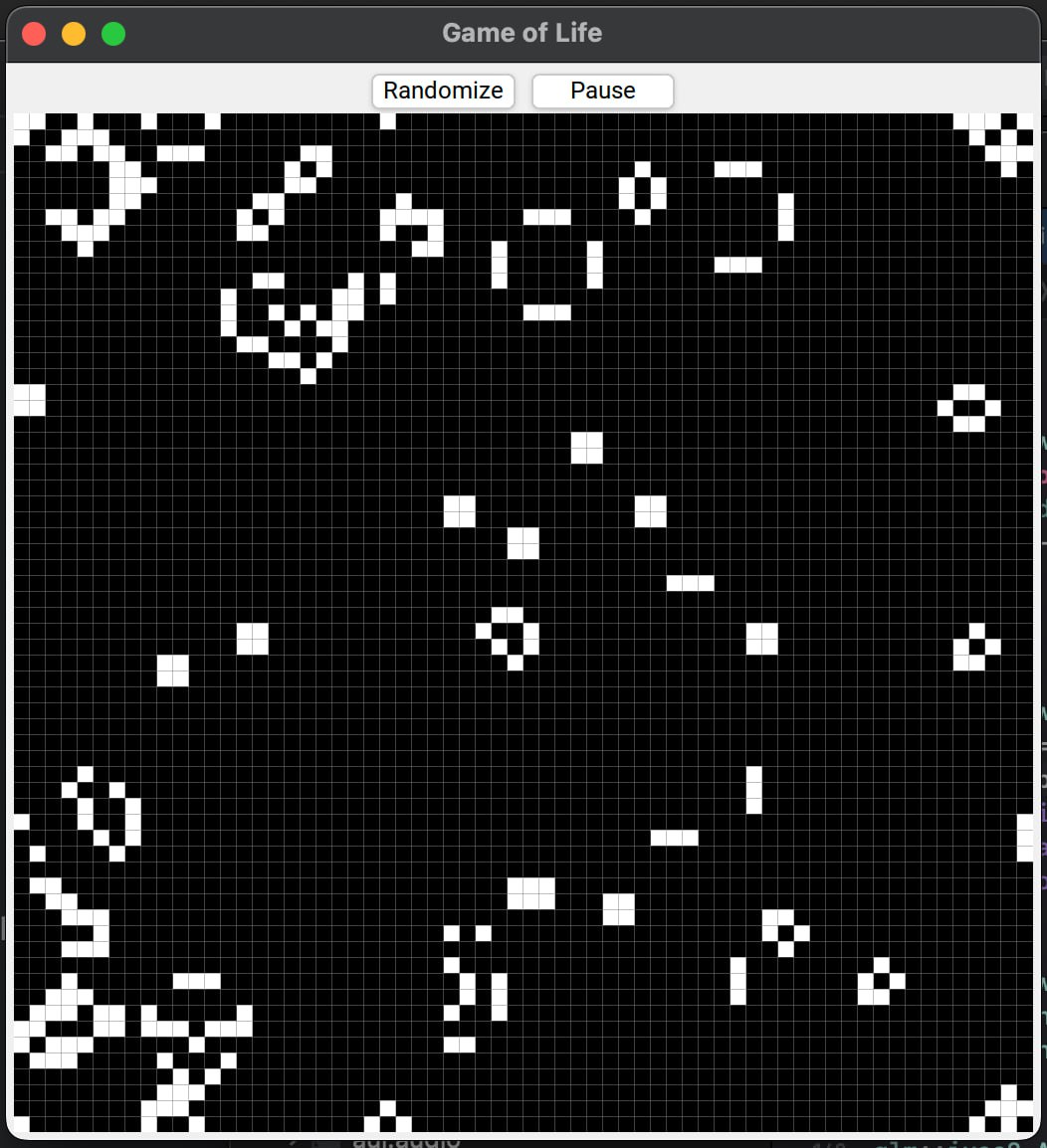

This is the main window for the Game of Life application. It sets up the UI with buttons to randomize the grid and start/pause the game, as well as a central area where the CellsView is displayed.

@skip class GameOfLifeWindow @until /// end

Source Code

Repository

CMakeLists.txt

cmake_minimum_required(VERSION 3.16)

if (NOT (AUI_PLATFORM_WIN OR AUI_PLATFORM_LINUX OR AUI_PLATFORM_MACOS))
    return()
endif ()

# Uncomment this code to pull AUI:
#
# file(
#         DOWNLOAD
#         https://raw.githubusercontent.com/aui-framework/aui/master/aui.boot.cmake
#         ${CMAKE_CURRENT_BINARY_DIR}/aui.boot.cmake)
# include(${CMAKE_CURRENT_BINARY_DIR}/aui.boot.cmake)
#
# auib_import(aui https://github.com/aui-framework/aui
#             COMPONENTS core views json)

aui_executable(aui.example.game_of_life)
aui_link(aui.example.game_of_life PRIVATE aui::views)

src/main.cpp

#include <range/v3/all.hpp>

#include <AUI/Platform/AWindow.h>
#include <AUI/Platform/Entry.h>
#include <AUI/Util/UIBuildingHelpers.h>
#include <AUI/View/AButton.h>
#include <AUI/View/AScrollArea.h>
#include <AUI/View/ATextArea.h>

using namespace declarative;
using namespace ass;
using namespace std::chrono_literals;

enum class CellState : std::uint8_t {
    DEAD,
    ALIVE,
};

constexpr CellState operator!(CellState s) {
    return s == CellState::ALIVE ? CellState::DEAD : CellState::ALIVE;
}

using CellsImage = AFormattedImage<APixelFormat::RGBA_BYTE>;

class Cells : public AObject {
public:
    Cells(glm::ivec2 size) {
        mSize = size;
        for (auto s : { &mStorage, &mNextPopulation }) {
            s->resize(size.x * size.y);
        }

        connect(mTimer->fired, me::frame);
        connect(isRunning.changed, AUI_SLOT(mTimer)::setRunning);
    }

    void frame() {
        mFrame = AThreadPool::global() * [&] {
            for (int y = 0; y < mSize.y; ++y) {
                for (int x = 0; x < mSize.x; ++x) {
                    glm::ivec2 i { x, y };
                    get(mNextPopulation, i) = [&] {
                        auto around = cellsAround(i);
                        switch (around) {
                            default:
                                return CellState::DEAD;
                            case 2:
                                return get(mStorage, i);
                            case 3:
                                return CellState::ALIVE;
                        }
                    }();
                }
            }
            std::swap(mStorage, mNextPopulation);

            emit frameComplete;
        };
    }

    [[nodiscard]] glm::ivec2 size() const noexcept { return mSize; }

    [[nodiscard]] const AVector<CellState>& storage() const noexcept { return mStorage; }

    [[nodiscard]] CellState& operator[](glm::ivec2 position) { return get(mStorage, position); }

    void randomize() {
        ranges::generate(mStorage, [&] {
            static std::default_random_engine re;
            static std::uniform_int_distribution d(0, 10);
            return d(re) > 7 ? CellState::ALIVE : CellState::DEAD;
        });
        emit frameComplete;
    }

    AProperty<bool> isRunning = false;
    emits<> frameComplete;

private:
    _<ATimer> mTimer = _new<ATimer>(100ms);
    AFuture<> mFrame;
    glm::ivec2 mSize {};
    AVector<CellState> mStorage;
    AVector<CellState> mNextPopulation;

    CellState& get(AVector<CellState>& storage, glm::ivec2 position) {
        position %= mSize;
        if (position.x < 0) {
            position.x = mSize.x + position.x;
        }
        if (position.y < 0) {
            position.y = mSize.y + position.y;
        }
        return storage[position.y * mSize.x + position.x];
    }

    unsigned cellsAround(glm::ivec2 position) {
        unsigned accumulator = 0;
        for (int y = -1; y <= 1; ++y) {
            for (int x = -1; x <= 1; ++x) {
                if (x == 0 && y == 0) {
                    continue;
                }
                accumulator += get(mStorage, position + glm::ivec2 { x, y }) == CellState::ALIVE ? 1 : 0;
            }
        }
        return accumulator;
    }
}; /// end

class CellsView : public AView {
public:
    static constexpr auto SCALE = 8_dp;

    CellsView(_<Cells> cells) : mCells(std::move(cells)) { connect(mCells->frameComplete, me::updateTexture); }

    void render(ARenderContext ctx) override {
        AView::render(ctx);
        if (mTexture) {
            ctx.render.rectangle(ATexturedBrush { mTexture }, { 0, 0 }, float(SCALE) * glm::vec2(mCells->size()));
        }
        auto drawGrid = [&] {
            ASmallVector<std::pair<glm::vec2, glm::vec2>, 128 * 2> points;
            for (int i = 1; i < mCells->size().x; ++i) {
                points << std::make_pair(glm::vec2(i * SCALE, 0.f), glm::vec2(i * SCALE, getSize().y));
            }
            for (int i = 1; i < mCells->size().y; ++i) {
                points << std::make_pair(glm::vec2(0.f, i * SCALE), glm::vec2(getSize().x, i * SCALE));
            }
            ctx.render.lines(ASolidBrush { AColor::GRAY }, points);
        };
        drawGrid();
    }

    void onPointerPressed(const APointerPressedEvent& event) override {
        AView::onPointerPressed(event);
        glm::ivec2 position = glm::ivec2(event.position / float(SCALE));
        (*mCells)[position] = !(*mCells)[position];
        updateTexture();
    }

    int getContentMinimumWidth() override { return mCells->size().x * SCALE; }

    int getContentMinimumHeight() override { return mCells->size().y * SCALE; }

private:
    _<Cells> mCells;
    _<ITexture> mTexture;

    void updateTexture() {
        if (!mTexture) {
            mTexture = AWindow::current()->getRenderingContext()->renderer().getNewTexture();
        }

        CellsImage image(mCells->size());
        for (unsigned y = 0; y < image.height(); ++y) {
            for (unsigned x = 0; x < image.width(); ++x) {
                image.set(
                    { x, y },
                    AFormattedColorConverter(
                        (*mCells)[glm::ivec2(x, y)] == CellState::ALIVE
                            ? AColor::WHITE
                            : AColor::TRANSPARENT_BLACK));
            }
        }
        mTexture->setImage(image);
        redraw();
    }
}; /// end

class GameOfLifeWindow : public AWindow {
public:
    GameOfLifeWindow() : AWindow("Game of Life") {
        setContents(Vertical {
          Centered {
            Horizontal {
              _new<AButton>("Randomize") AUI_LET {
                      connect(it->clicked, AUI_SLOT(mCells)::randomize);
                  },
              _new<AButton>() AUI_LET {
                      it & mCells.isRunning > [](AButton& b, bool isRunning) {
                          b.setText(isRunning ? "Pause" : "Run");
                      };
                      connect(it->clicked, [&] { mCells.isRunning = !mCells.isRunning; });
                  },
            },
          },
          Centered {
            _new<CellsView>(aui::ptr::fake_shared(&mCells)) AUI_WITH_STYLE {
                  Expanding(),
                  BackgroundSolid(AColor::BLACK),
                },
          },
        });
    }

private:
    Cells mCells { { 64, 64 } };
}; /// end

AUI_ENTRY {
    auto w = _new<GameOfLifeWindow>();
    w->pack();
    w->show();
    return 0;
}
