AUI Contacts#

Example's page

This page describes an example listed in ui category.

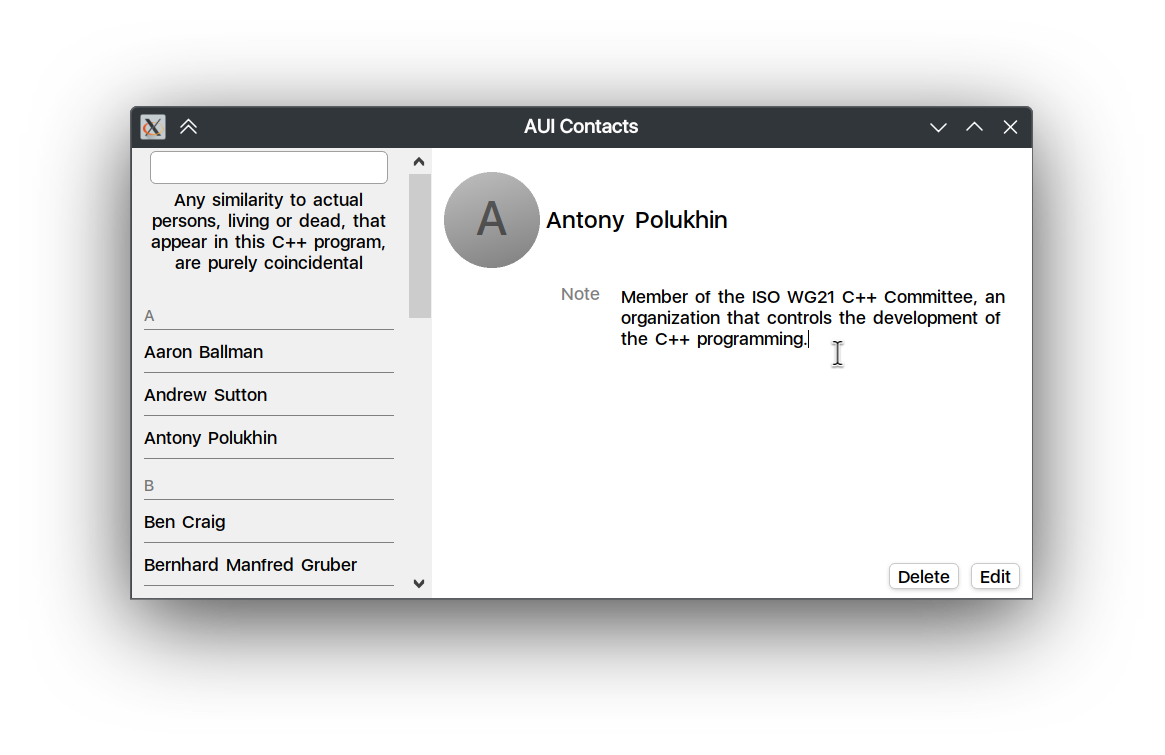

Usage of AUI_DECLARATIVE_FOR to make a contacts-like application.

UI is defined using a declarative syntax, where the structure and layout of the UI are specified as a series of function calls.

The application uses an AProperty named mContacts to store a vector of contact objects. Each contact object has properties like displayName, note, etc.

Source Code#

Repository

CMakeLists.txt#

1
2
3
aui_executable(aui.example.contacts)

aui_link(aui.example.contacts PRIVATE aui::core aui::views)

src/main.cpp#

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
#include <range/v3/all.hpp>
#include <AUI/View/AForEachUI.h>
#include <AUI/Platform/Entry.h>
#include "AUI/Platform/AWindow.h"
#include "AUI/Util/UIBuildingHelpers.h"
#include "AUI/View/AScrollArea.h"
#include "AUI/Model/AListModel.h"
#include <AUI/View/ATextField.h>
#include <AUI/View/AText.h>
#include "model/PredefinedContacts.h"

#include <view/ContactDetailsView.h>
#include <view/common.h>
#include <AUI/View/ASpacerFixed.h>
#include "AUI/Platform/AMessageBox.h"
#include "AUI/View/Dynamic.h"

using namespace declarative;
using namespace ass;
using namespace std::chrono_literals;

static constexpr auto CONTACTS_SORT = ranges::actions::sort(std::less {}, [](const _<Contact>& c) -> decltype(auto) { return *c->displayName; });

static auto groupLetter(const AString& s) { return s.empty() ? AChar(U'_') : s.first(); }

class ContactsWindow : public AWindow {
public:
    ContactsWindow() : AWindow("AUI Contacts", 600_dp, 300_dp) {
        setContents(
            Horizontal {
              AScrollArea::Builder()
                      .withContents(
                          Vertical {
                            SpacerFixed(8_dp),
                            _new<ATextField>() && mSearchQuery,
                            SpacerFixed(8_dp),
                            AText::fromString(predefined::DISCLAIMER) AUI_WITH_STYLE { ATextAlign::CENTER },
                            SpacerFixed(8_dp),
                            experimental::Dynamic {
                                .content = AUI_REACT(mSearchQuery->empty() ? indexedList() : searchQueryList()),
                            },
                            Label { AUI_REACT("{} contact(s)"_format(mContactCount)) } AUI_LET {
                                AObject::connect(AUI_REACT(ass::PropertyList{
                                    FontSize { 10_pt },
                                    ATextAlign::CENTER,
                                    Margin { 8_dp },
                                    mSearchQuery->empty() ? Visibility::VISIBLE : Visibility::GONE,
                                }), AUI_SLOT(it)::setCustomStyle);
                            },
                          } AUI_WITH_STYLE { Padding(0, 8_dp) })
                      .build() AUI_WITH_STYLE { Expanding(0, 1), MinSize(200_dp) },

              experimental::Dynamic {
                  .content = AUI_REACT(mSelectedContact != nullptr ? contactDetails(mSelectedContact) : nullptr),
              } AUI_WITH_STYLE { Expanding(), MinSize(300_dp), BackgroundSolid { AColor::WHITE } },
            } AUI_WITH_STYLE {
              Padding(0),
            });
    }

private:
    AProperty<AVector<_<Contact>>> mContacts =
            predefined::PERSONS | ranges::views::transform([](Contact& p) { return _new<Contact>(std::move(p)); }) |
            ranges::to_vector | CONTACTS_SORT;
    APropertyPrecomputed<std::size_t> mContactCount = [this] { return mContacts->size(); };
    AProperty<_<Contact>> mSelectedContact = nullptr;
    AProperty<AString> mSearchQuery;
    APropertyPrecomputed<AString> mSearchQueryLowercased = [this] { return mSearchQuery->lowercase(); };

    void deleteCurrentContact() {
        if (mSelectedContact == nullptr) {
            return;
        }
        if (AMessageBox::show(this,
                              "Do you really want to delete?",
                              "This action is irreversible!",
                              AMessageBox::Icon::NONE, AMessageBox::Button::YES_NO) != AMessageBox::ResultButton::YES) {
            return;
        }
        mContacts.writeScope()->removeFirst(mSelectedContact);
        mSelectedContact = nullptr;
    }

    _<AView> indexedList() {
        return AUI_DECLARATIVE_FOR(group, *mContacts | ranges::views::chunk_by([](const _<Contact>& lhs, const _<Contact>& rhs) {
                                return groupLetter(lhs->displayName) == groupLetter(rhs->displayName);
                            }), AVerticalLayout) {
            auto firstContact = *ranges::begin(group);
            auto firstLetter = groupLetter(firstContact->displayName);
            ALogger::info("Test") << "Computing view for group " << AString(1, firstLetter);
            return Vertical {
                Label { firstLetter } AUI_WITH_STYLE {
                                        Opacity(0.5f),
                                        Padding { 12_dp, 0, 4_dp },
                                        Margin { 0 },
                                        FontSize { 8_pt },
                                      },
                common_views::divider(),
                AUI_DECLARATIVE_FOR(i, group, AVerticalLayout) {
                    ALogger::info("Test") << "Computing view for item " << i->displayName;
                    return contactPreview(i);
                },
            };
        };
    }

    _<AView> searchQueryList() {
        auto searchFilter = ranges::views::filter([&](const _<Contact>& c) {
            for (const auto& field : { c->displayName, c->note }) {
                if (field->lowercase().contains(*mSearchQueryLowercased)) {
                    return true;
                }
            }
            return false;
        });
        return AUI_DECLARATIVE_FOR(i, *mContacts | searchFilter, AVerticalLayout) {
            return contactPreview(i);
        };
    }

    _<AView> contactPreview(const _<Contact>& contact) {
        return Vertical {
            Label { AUI_REACT(contact->displayName) } AUI_WITH_STYLE { Padding { 8_dp, 0 }, Margin { 0 }, ATextOverflow::ELLIPSIS },
            common_views::divider(),
        } AUI_LET {
            connect(it->clicked, [this, contact] { mSelectedContact = contact; });
        };
    }

    _<ContactDetailsView> contactDetails(const _<Contact>& contact) {
        if (!contact) {
            return nullptr;
        }
        auto d = _new<ContactDetailsView>(contact);
        connect(contact->displayName.changed, d, [this] {
            *mContacts.writeScope() |= CONTACTS_SORT;
        });
        connect(d->deleteAction, me::deleteCurrentContact);
        return d;
    }
};

AUI_ENTRY {
    _new<ContactsWindow>()->show();
    return 0;
}

src/model/Contact.h#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
// Copyright (C) 2020-2025 Alex2772 and Contributors
//
// SPDX-License-Identifier: MPL-2.0
//
// This Source Code Form is subject to the terms of the Mozilla Public
// License, v. 2.0. If a copy of the MPL was not distributed with this
// file, You can obtain one at http://mozilla.org/MPL/2.0/.

#pragma once

#include <AUI/Common/AObject.h>
#include "AUI/Common/AProperty.h"

struct Contact {
    AProperty<AString> displayName;
    AProperty<AString> phone;
    AProperty<AString> address;
    AProperty<AString> email;
    AProperty<AString> homepage;
    AProperty<AString> note;
};

src/model/PredefinedContacts.h#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
// Copyright (C) 2020-2025 Alex2772 and Contributors
//
// SPDX-License-Identifier: MPL-2.0
//
// This Source Code Form is subject to the terms of the Mozilla Public
// License, v. 2.0. If a copy of the MPL was not distributed with this
// file, You can obtain one at http://mozilla.org/MPL/2.0/.

#include "Contact.h"

namespace predefined {
static constexpr auto DISCLAIMER = "Any similarity to actual persons, living or dead, that appear in this C++ program, are purely coincidental";
inline std::array PERSONS = {
  Contact{ .displayName = "Bryce Adelstein Lelbach" },
  Contact{ .displayName = "Matt Austern" },
  Contact{ .displayName = "Aaron Ballman" },
  Contact{ .displayName = "JF Bastien" },
  Contact{ .displayName = "Dean Michael Berris" },
  Contact{ .displayName = "Hans Boehm" },
  Contact{ .displayName = "Chandler Carruth" },
  Contact{ .displayName = "Stephen D. Clamage" },
  Contact{ .displayName = "Ben Craig" },
  Contact{ .displayName = "Guy Davidson" },
  Contact{ .displayName = "Hana Dusíková" },
  Contact{ .displayName = "Stefanus Du Toit" },
  Contact{ .displayName = "Glen Fernandes" },
  Contact{ .displayName = "Marco Foco" },
  Contact{ .displayName = "J. Daniel Garcia" },
  Contact{ .displayName = "Peter Gottschling" },
  Contact{ .displayName = "Bernhard Manfred Gruber" },
  Contact{ .displayName = "Michael Hava" },
  Contact{ .displayName = "Howard Hinnant" },
  Contact{ .displayName = "Tom Honermann" },
  Contact{ .displayName = "Erich Keane" },
  Contact{ .displayName = "Kyle Kloepper" },
  Contact{ .displayName = "Dietmar Kühl" },
  Contact{ .displayName = "Inbal Levi" },
  Contact{ .displayName = "Lisa Lippincott" },
  Contact{ .displayName = "William M. (Mike) Miller" },
  Contact{ .displayName = "Clark Nelson" },
  Contact{ .displayName = "Eric Niebler" },
  Contact{ .displayName = "Roger Orr" },
  Contact{ .displayName = "P.J. Plauger" },
  Contact{ .displayName = "Antony Polukhin" },
  Contact{ .displayName = "Mateusz Pusz" },
  Contact{ .displayName = "Nina Dinka Ranns" },
  Contact{ .displayName = "Bill Seymour" },
  Contact{ .displayName = "Peter Sommerlad" },
  Contact{ .displayName = "Bryan St. Amour" },
  Contact{ .displayName = "Bjarne Stroustrup" },
  Contact{ .displayName = "Herb Sutter" },
  Contact{ .displayName = "Andrew Sutton" },
  Contact{ .displayName = "Daveed Vandevoorde" },
  Contact{ .displayName = "JC van Winkel" },
  Contact{ .displayName = "Vassil Vassilev" },
  Contact{ .displayName = "Ville Voutilainen" },
  Contact{ .displayName = "Michael Wong" },
  Contact{ .displayName = "Jeffrey Yasskin" },
  Contact{ .displayName = "Niall Douglas" },
};
}

src/view/ContactDetailsView.h#

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
#pragma once

#include <model/Contact.h>
#include <AUI/View/AViewContainer.h>

class ContactDetailsView : public AViewContainerBase {
public:
    ContactDetailsView(_<Contact> contact);

signals:
    emits<> deleteAction;

private:
    _<Contact> mContact;
    _<Contact> mOriginalContact;
    AProperty<bool> mEditorMode = false;

    template<typename T>
    _<AView> presentation(AProperty<T>& property);

    template<typename T>
    _<AView> row(AString title, AProperty<T>& property);

    void drop();
    void toggleEdit();
};

src/view/ContactDetailsView.cpp#

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
#include "ContactDetailsView.h"
#include "AUI/View/ATextField.h"
#include "common.h"
#include "AUI/Platform/AMessageBox.h"
#include <AUI/Util/UIBuildingHelpers.h>
#include <AUI/View/AButton.h>
#include <AUI/View/AScrollArea.h>
#include <AUI/View/ATextArea.h>

using namespace ass;
using namespace declarative;

static constexpr auto EDITOR_CONTENT_MAX_WIDTH = 400_dp;

namespace {
_<AView> profilePhoto(const _<Contact>& contact) {
    return Centered {
        Label {
          AUI_REACT(contact->displayName->empty() ? "?" : AString(1, contact->displayName->first()).uppercase())
        } AUI_WITH_STYLE { Opacity(0.5f), FontSize { 32_dp } },
    } AUI_WITH_STYLE {
        FixedSize { 64_dp },
        BorderRadius { 32_dp },
        BackgroundGradient { AColor::GRAY.lighter(0.5f), AColor::GRAY, 163_deg },
    };
}

template <typename T>
_<AView> viewer(AProperty<T>& property) {
    return Label { AUI_REACT("{}"_format(*property)) };
}

template <typename T>
_<AView> editor(AProperty<T>& property);

template <>
_<AView> editor(AProperty<AString>& property) {
    return _new<ATextField>() && property;
}
}   // namespace

template <typename T>
_<AView> ContactDetailsView::presentation(AProperty<T>& property) {
    if (mEditorMode) {
        return editor(property) << ".row-value";
    }
    return viewer(property) << ".row-value";
}

ContactDetailsView::ContactDetailsView(_<Contact> contact) : mContact(std::move(contact)) {
    mOriginalContact = mContact;
    setExtraStylesheet(AStylesheet {
      {
        c(".row-value"),
        Expanding(1, 0),
      },
    });
    connect(mEditorMode, [this] {
        setContents(Vertical::Expanding {
          AScrollArea::Builder().withContents(Centered {
            Vertical::Expanding {
              Horizontal {
                profilePhoto(mContact),
                Centered::Expanding {
                  presentation(mContact->displayName) AUI_WITH_STYLE { FontSize { 12_pt } },
                },
              } AUI_WITH_STYLE { Margin { 8_dp, {} }, LayoutSpacing { 4_dp } },
              row("Phone", mContact->phone),
              row("Address", mContact->address),
              row("Email", mContact->email),
              row("Homepage", mContact->homepage),
              Horizontal::Expanding {
                Vertical {
                  Label { "Note" } AUI_WITH_STYLE { FixedSize { 100_dp, {} }, Opacity { 0.5f }, ATextAlign::RIGHT },
                },
                _new<ATextArea>() && mContact->note,
              } AUI_WITH_STYLE {
                    MinSize { {}, 100_dp },
                    LayoutSpacing { 4_dp },
                  },
            } AUI_WITH_STYLE { MaxSize(EDITOR_CONTENT_MAX_WIDTH, {}), Padding(8_dp), LayoutSpacing { 4_dp } },
          }),
          Centered {
            Horizontal::Expanding {
              SpacerExpanding(),
              Button { Label { mEditorMode ? "Discard" : "Delete" }, {me::drop} },
              Button { Label { mEditorMode ? "Done" : "Edit" }, {me::toggleEdit} },
            } AUI_WITH_STYLE { MaxSize(EDITOR_CONTENT_MAX_WIDTH, {}), Padding(4_dp), LayoutSpacing { 4_dp } },
          },
        });
    });
}

void ContactDetailsView::drop() {
    if (!mEditorMode) {
        // delete
        emit deleteAction;
        return;
    }

    // discard
    if (AMessageBox::show(dynamic_cast<AWindow*>(AWindow::current()), "Do you really want to discard?", "This action is irreversible!", AMessageBox::Icon::NONE, AMessageBox::Button::YES_NO) != AMessageBox::ResultButton::YES) {
        return;
    }
    mContact = mOriginalContact;
    mEditorMode = false;
}

void ContactDetailsView::toggleEdit() {
    if (mEditorMode) {
        // done
        *mOriginalContact = std::move(*mContact);
        mContact = mOriginalContact;
    } else {
        // edit
        mContact = _new<Contact>(*mOriginalContact);
    }
    mEditorMode = !mEditorMode;
}

template <typename T>
_<AView> ContactDetailsView::row(AString title, AProperty<T>& property) {
    if (!mEditorMode) {
        if (property == T {}) {
            return nullptr;
        }
    }
    return Vertical {
        Horizontal {
          Label { std::move(title) } AUI_WITH_STYLE { FixedSize { 100_dp, {} }, Opacity { 0.5f }, ATextAlign::RIGHT },
          presentation(property),
        } AUI_WITH_STYLE { LayoutSpacing { 4_dp } },
        common_views::divider(),
    } AUI_WITH_STYLE { LayoutSpacing(4_dp) };
}

src/view/common.h#

1
2
3
4
5
6
7
#pragma once

#include <AUI/View/AView.h>

namespace common_views {
_<AView> divider();
}

src/view/common.cpp#

1
2
3
4
5
6
7
8
9
#include "common.h"
#include <AUI/Util/UIBuildingHelpers.h>

using namespace ass;
using namespace declarative;

_<AView> common_views::divider() {
    return _new<AView>() AUI_WITH_STYLE { FixedSize { {}, 1_px }, BackgroundSolid { AColor::GRAY } };
}
